Kubota

DMC6336T

Call for Pricing
0 0 60 Offer Badge

Extended Warranty

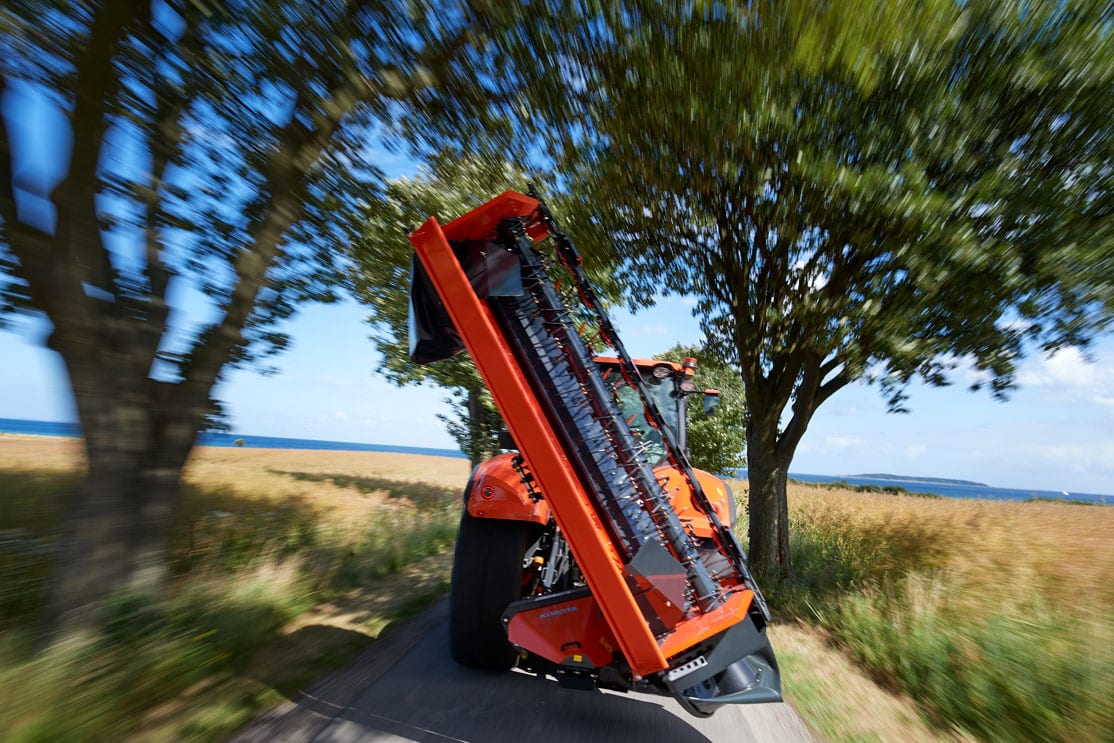

Thanks to its semi-swing conditioner and 11’ 6” cutting range, the Kubota DMC6336T assists you in covering larger swaths of land and maximizing your efficiency. The disc mower conditioner features ten discs, each yielding three blades, and with improved overlap between each disc, you’ll enjoy the most precise cut available. The DMC6336T is easily folded to provide a 9’ 10” transport width and the disc mower conditioner’s advanced hydraulics and suspension give it exceptional maneuverability.
Compare Specs Find a Part Email Literature Finance Build Your Kubota

KUBOTA SPECIAL OFFERS

KUBOTA DMC SERIES - NEW HAY TOOLS PURCHASE SPECIAL OFFERS
Up to 0% A.P.R. for 60 Months on your new Kubota DMC Series!
View Details
Offer ends 1/1/2022
Farmer Veteran Coalition Member Rebate
Customer instant rebate for Farmer Veteran Coalition members.
View Details
Offer ends 12/31/2021

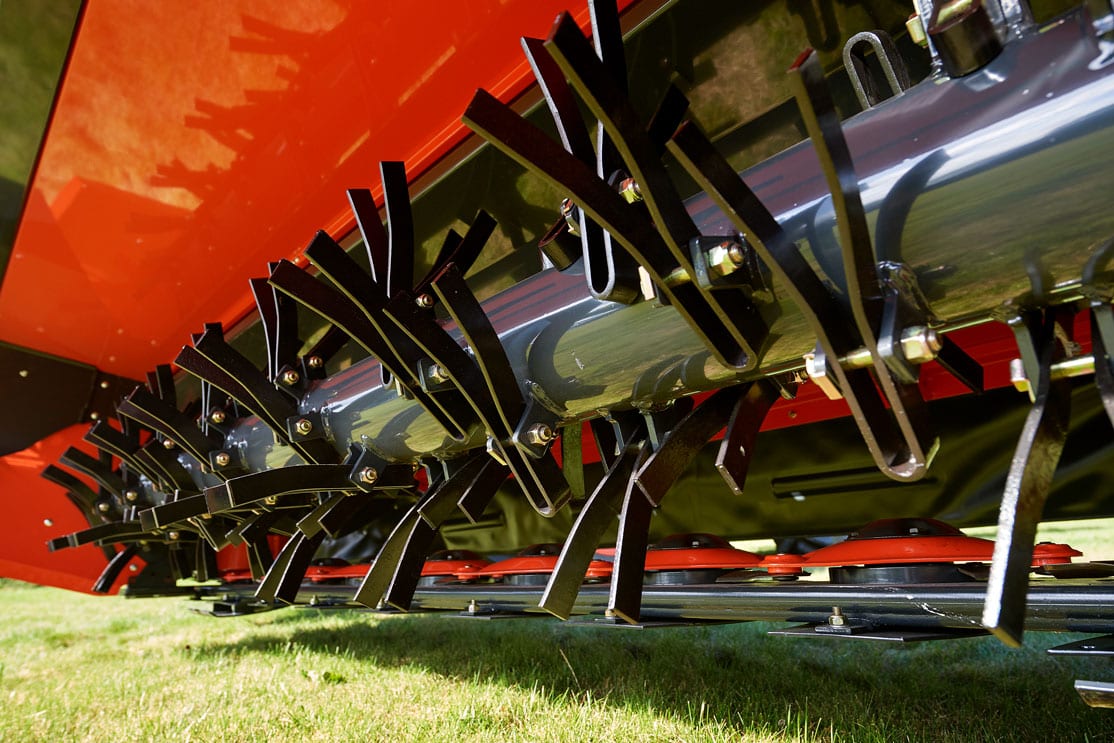

Utilizing centrifugal force is what makes the Kubota SemiSwing conditioner stand out among other conditioning systems. It offers an aggressive conditioning effect with excellent tine protection and virtually no wear and tear. The conditioner plate can be set in 3 positions, according to the required conditioning effect. Depending on crop conditions and the amount of crop you are cutting, the plate is easily adjusted to achieve the desired conditioning.

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing it to follow the field contour. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage. When the obstacle is passed, the mowing section automatically returns to the working position.

The DMC8000 series offers a secure and convenient transport solution, which includes an integrated lighting kit for excellent road visibility. The transport width for DMC8028T and DMC8028R is 8'1" and the transport width for DMC8032T and DMC8032R is 9'1".

All models can be fitted with an optional easy-to-use wide spreading kit. This enables crop to be cut and spread in one operation, saving both time and resources. Best of all, changing from swathing to wide spreading is a one-man-job.

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height.

The long spring design allows for excellent ground following ability. In uneven fields, the mower is able to adapt +19.7"/-5.9" The suspension springs are fitted on the widest possible position of the mowing section to ensure even ground pressure. The weight on ground is stable and only approximately 88 -110 pounds on each side. The suspension arms are fitted between the mowing section and mainframe so when an obstacle is encountered, the mowing section moves backwards and upwards to allow the object to pass. The mower will automatically return to its working position once the obstacle is cleared.

  • DMC8028T – 9’2”
  • DMC8032T – 10’6”
  • DMC8032R – 10’6”
Inspired by the racing world, Kubota has created a series of mower conditioners with a ground breaking suspension concept – the QuattroLink. The DMC6300 & 63100 series has been designed for even more productivity and to handle tougher conditions than ever. With it’s accurate tracking ability and very flexible working range this suspension provides unrivalled cutting performance.
With its 33’6” working width the DMC6300 series Vario is geared for productive working days. Come demanding terrains, come long challenging work days – the new DMC6300 series Vario has been designed to handle tougher conditions. Packed with new innovative features such as the QuattroLink suspension, Vario adjustment of overlap and full width BreakAway protection DMC6300 series Vario is custom-made to boost efficiency.
