Kubota

RA1042T

Call for Pricing

Extended Warranty

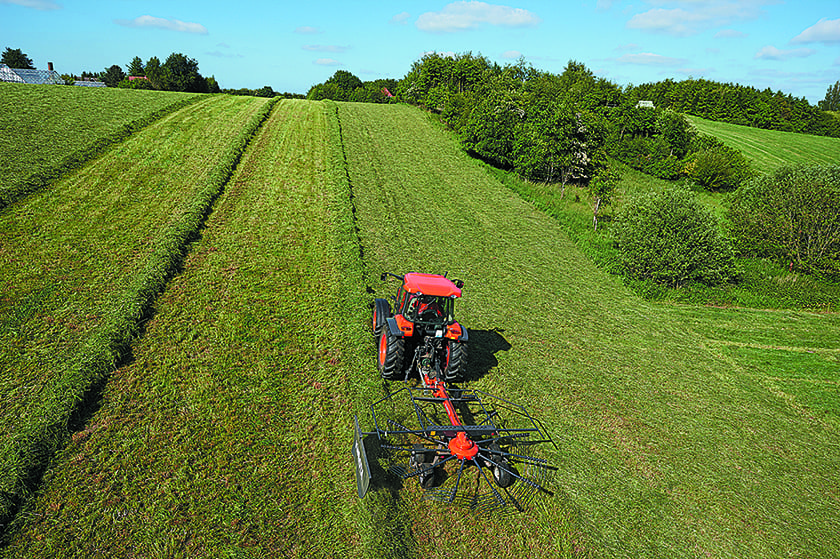

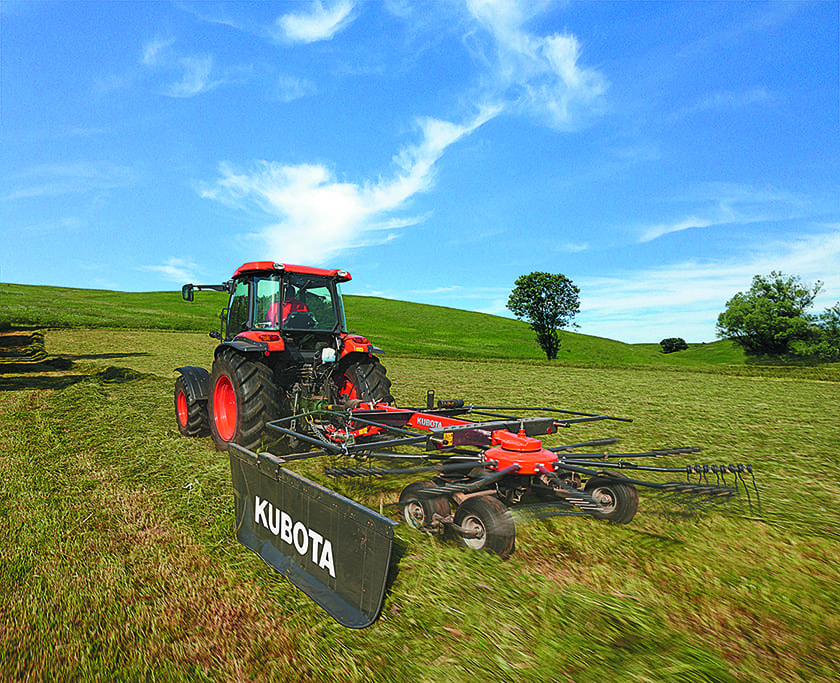

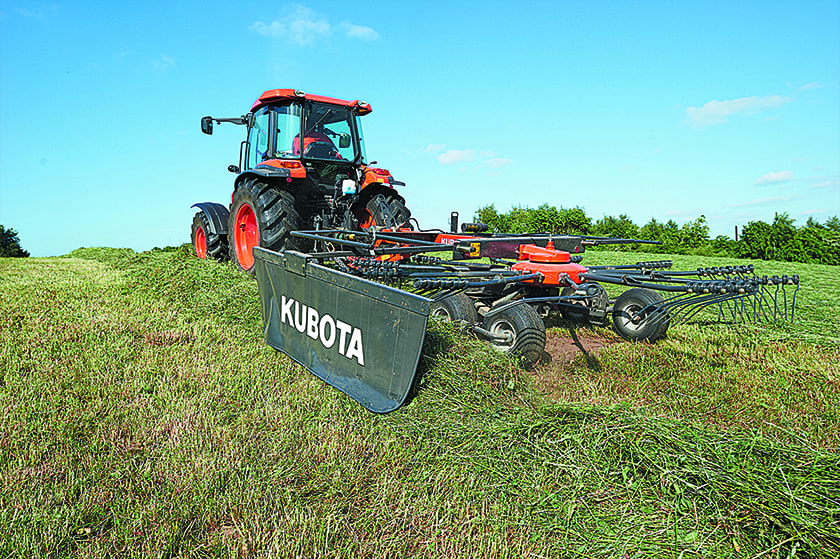

Do you need higher performance without higher horsepower? The Kubota RA1042T has the bearing strength and durability of larger models. The 10’ 2'' working width and the rake’s curved tines are primed and ready to handle high capacity crops and still give you the performance you’re looking for. The trailed rake is also transported easily after a long day’s work, thanks to its foldable tine arms, making for an astonishing 6’ 7” transport width.
Download Specs Compare Specs Find a Part Download Brochure Email Literature Finance Build Your Kubota

KUBOTA SPECIAL OFFERS

RAKE SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
View Details
Offer ends 4/1/2024
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
View Details
Offer ends 12/31/2024
Implement Stand Alone Financing
Stand Alone Financing Installment Program
View Details
Offer ends 1/1/2025

The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.

Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.

The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.

The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.
